Product Description

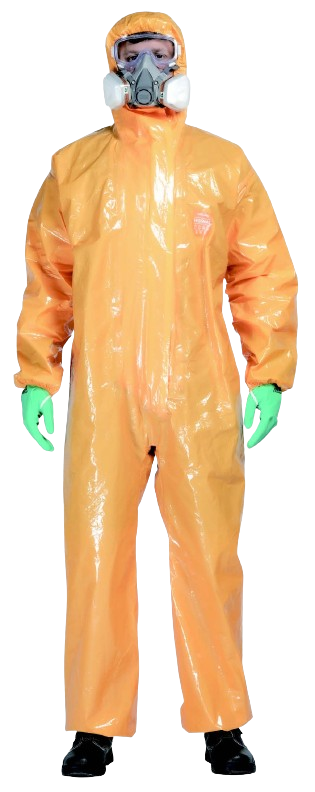

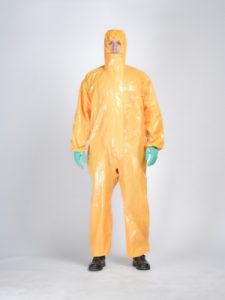

HG6945

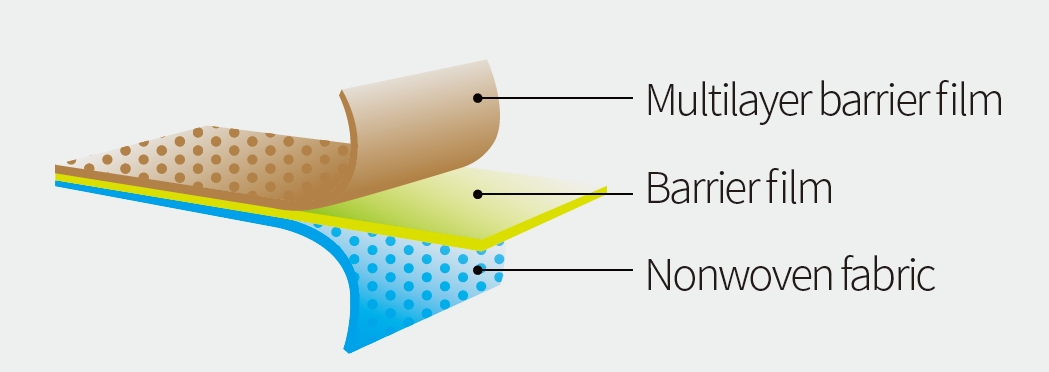

Innovative combination of multi-layer high-performance barrier film and non-woven fabric.
Close Up
Double-layer zipper effectively prevents liquid splashing
Thumb loop design to prevent cuffs from slipping down
3 piece hood design, makes the hood and respirator better fit, especially for full face respirators
Elastic waistband to djust the size to fit various body types, all seams are taped for better protection
Product Features
The fabric is a composite fabric of high-performance barrier film and non-woven fabric synthesized from multiple layers of materials. The fabric is light, thin and comfortable, and has excellent protection against organic, inorganic chemicals and biological media; it meets the requirements of Type 3, Type 4, Type 5 and Type 6 standards. Highly visible bright yellow color improves the safety of the wearer. The product can be used in the treatment and transportation of chemicals and hazardous wastes, and is also widely used in petrochemicals, chemical manufacturing, and biochemical protection.
- Effectively provide protection against a variety of liquid chemicals.
- No toxic and harmful substances such as silicone oil and formaldehyde.
- Meet the anti-static requirements of EN1149-5.
- Meet the puncture and flame resistance performance tests required by the EN1073-2 standard.
- Passed the EN14126:2003 anti-infective medium test.
- The internal sewing and external heat sealing process improves the seam strength and can better protect against liquids, particles and various chemicals.
- The double-layer zipper design improves the tightness of the product and further enhances the protective performance.
- Knee pads and shoe covers design meet the various requirements of users.
- Comfortable and safe style design, three-piece hood and crotch triangle design improve the comfort of wearing.
Product Applications
Transportation and treatment of chemicals and hazardous wastes
Petrochemicals
Chemical manufacturing
Synthetic materials
Acid and alkali chemicals and environmental treatment
Virus and contaminated area protection
Biochemical protection
Site survey
Industrial Cleaning Operations
Nuclear Industry Radioactive Particles and Dust Protection
Product Parameters
PHYSICAL DATA | STANDARD | HG6945 |
Flex cracking | ISO 7854:1995 | 3 |
Tear resistance | EN ISO 9073-4:1997 | 3 |
Textile strength | EN ISO 13934-1:1999 | 3 |
Abrasion resistance | ISO 120137-1:2016 | 6 |
Puncture resistance | EN 863:1995 | 2 |
Resistance to ignition | EN 13774-4:2001 | pass |
Resistance to blocking | EN 25978:1990 | pass |
BIO-HAZARD DATA | STANDARD | HG6945 |
Synthetic blood penetration | ISO 16003:2004 | 6 |
Solid particle penetration resistance | ISO 22612:2005 | 3 |
Liquid aerosol penetration resistance | ISO/DIS 22611:2003 | 3 |
Wet bacteria penetration resistance | EN ISO 22610:2006 | 6 |
WHOLE SUIT DATA | STANDARD | HG6945 |
Total inward leakage (whole suit test) | EN ISO 13882:2004 | pass |
Whole suit integrity test (full) | EN ISO 17491-3:2008 | pass |
Seam strength | EN ISO 13935-2:1999 | 4 |
CHEMICAL | STANDARD | HG6945 |
Acetone | EN ISO 6529 | 6 |
Acetonitrile | EN ISO 6529 | 6 |
Butanol | EN ISO 6529 | 6 |
Carbon disulfide | EN ISO 6529 | 6 |
Chlorine gas | EN ISO 6529 | 6 |
Dichloromethane | EN ISO 6529 | 6 |
Ethyl acetate | EN ISO 6529 | 6 |
37% Formaldehyde | EN ISO 6529 | 6 |
37% Hydrochloric acid | EN ISO 6529 | 6 |
49% Hydrofluoric acid | EN ISO 6529 | 6 |
30% Hydrogen peroxide | EN ISO 6529 | 6 |
n-Hexane | EN ISO 6529 | 6 |
65% Nitric acid | EN ISO 6529 | 6 |
13% Sodium hypochlorite | EN ISO 6529 | 6 |
60% Sodium hydroxide | EN ISO 6529 | 6 |
98% Sulfuric acid | EN ISO 6529 | 6 |
Tetrahydrofuran | EN ISO 6529 | 6 |
Toluene | EN ISO 6529 | 6 |
28% Aqueous ammonia | EN ISO 6529 | 2 |
Methanol | EN ISO 6529 | 3 |
Acetic acid | EN ISO 6529 | 3 |
MISCELLANEOUS DATA | STANDARD | HG6945 |
Antistatic property | EN 1149-5:2018 | One side pass |
pH value | EN ISO 3071:2006 | pass |
